1. Main technical parameters

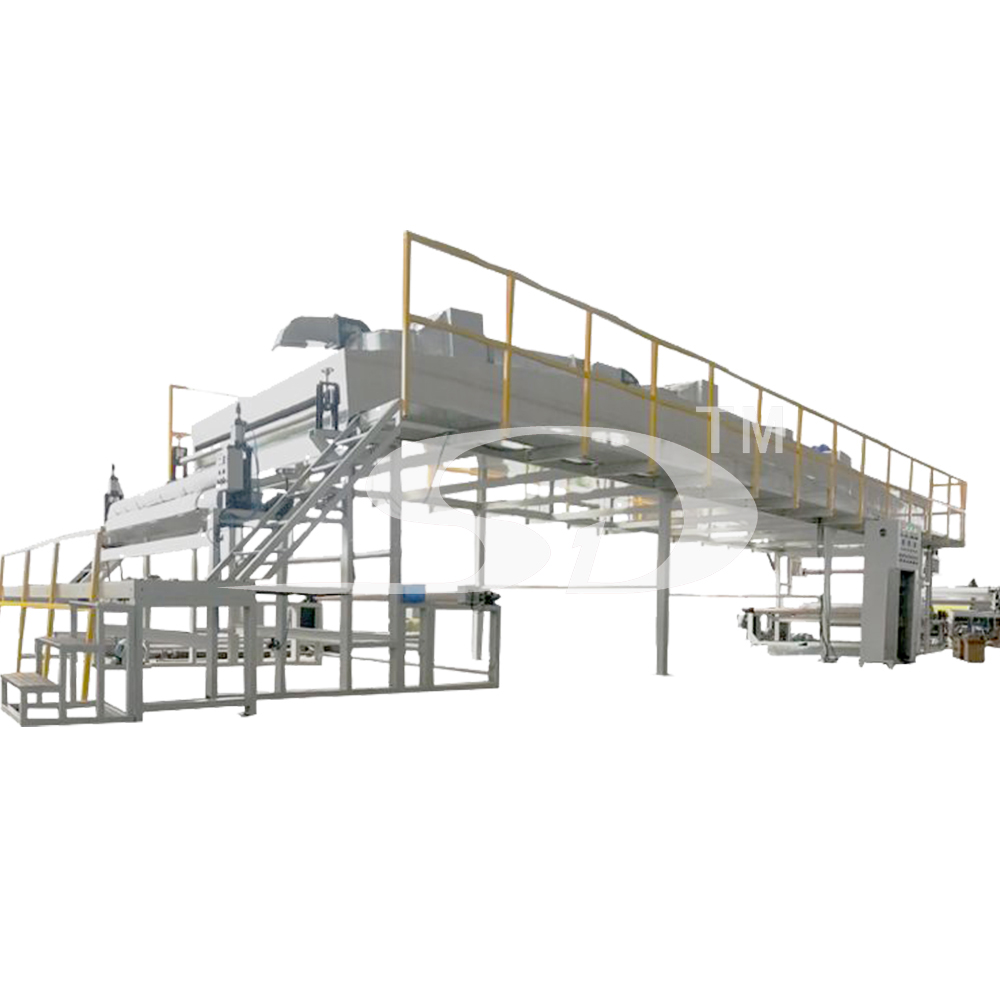

(1) Manufacturing basis: According to the equipment sample drawing SD-H1200-D1263 type self-adhesive machine

(2) Heat source: industrial electricity 380V 50HZ

(3) Roller surface width: 1200mm

(4) Width of finished product: 1000mm-1500mm

(5) Mechanical speed: 1-15/min

(6) Installed capacity: about 14KVA

(7) Dimensions: 164000×2200×2300mm

(8) The weight of the machine is about 5500Kg

Second, the main configuration

1. Unwinding device

1. Φ74 pneumatic shaft 1

2, 5KG magnetic powder brake 1 set

3. 1 set of rack

4. 1 set of air shaft seat

5. 3 Φ 65 cloth guide rollers

6. Transmission system 1 set

7. Fabric expander 1

8. 1 bending roll

2. Compound device

1. 1 Φ120 steel bar

2. Φ130 silicone roller 1 piece

3. 2 pieces of Φ80X80-30 cylinder

4 racks 1 set

5 standard parts

6. VR-2 stepless speed change 1 set

7. Frame body 10# channel steel 1 set

3. Oven heating device

1. Φ63 roller 10

2. Heating oven 2

3. Fan 2

4. 1 set of 1.5kw inverter

5. Heating oven bracket 1 set

6. 1 set of detoxification system

4. Gluing device

1. 1 Φ240 rubber roller

2. 1 piece of squeegee

3. 1 pedal

4. 2 sets of precision racks

5. Φ100 handwheel 4 pcs

6. Φ200 handwheel 1

9. 2 Φ80X60-30 cylinders

11. 1.5KW swing reduction motor 1 set

12. Stainless steel rubber grain 1 pc

5. Transfer device

1. 1 Φ180 color roller

2. Φ240 coloring roller 1

3. 2 sets of racks

4. Φ180 pressing roller 1

4. 1 set of heating mantle

5. Φ 76 cloth support roller 1

6. Transmission system 1 set

7. Φ120 traction rubber roller 1

8. Φ130 traction steel roller 1

9. 1 set of frame

10. Standard parts

6. Oven main device

1. 100X100 square tube several

2. 40X40 square tube several

3. Several aluminum silicate insulation layers

4.1.2 Iron plate several

5, 0.8 tin plate several

7. Frame: The frame is welded by 10% channel steel, square tube, etc.

8. Electrical control and operation cabinet

1. Main control box: welding upright chassis 1200*1800*600;

2. Use point and push button control methods;

3. The main electrical accessories adopt domestic brands.

9. Spray paint on the surface of the equipment

⑴Anti-rust primer

⑵Putty

⑶Surface painting (color selected by the customer).

10. Description:

1. Configure emergency stop switches in the front, middle and back of the equipment;

2. The detailed structure and configuration may be changed during the design and production without affecting the performance of the whole machine. (The selected brand of accessories remains unchanged)

3. This parameter list is for reference only, and the final configuration is selected according to customer needs and actual production needs of customers.

4. The configuration is automatic operation and fully controlled by PLC.

5. This configuration requires high precision, non-professionals without training, please do not operate the machine.
